WJ31D

Features ◇ 90A contact switching capability ◇ Low power consumption, pulse drive ◇ Strong impact resistance, high reliability ◇ The withstand voltage between the contact and the coil is 4KV ◇ Available in single coil and double coil


  • Description

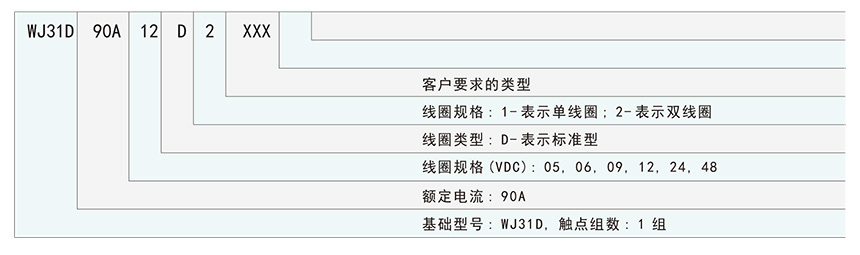

  • Order Specification No.
    • Commodity name: WJ31D
    • Commodity ID: WJ31D

    Features ◇ 90A contact switching capability ◇ Low power consumption, pulse drive ◇ Strong impact resistance, high reliability ◇ The withstand voltage between the contact and the coil is 4KV ◇ Available in single coil and double coil

    Features:

    ◇ 90A contact switching capability

    ◇ Low power consumption, pulse drive

    ◇ Strong impact resistance, high reliability

    ◇ The withstand voltage between the contact and the coil is 4KV

    ◇ Available in single coil and double coil

    ◇ Environmentally friendly products (RoHS compliant)

    ◇ Comply with IEC62055-31 UC2 clause

    ◇ Has obtained IEC61810 certification

    ◇ Dimensions: 38mm × 30mm × 16.5mm



    Typical use:

    ◇ Smart watt-hour meter ◇ Electrical remote control ◇ Power composite switch ◇ Electrical equipment
